A loose moissanite stone needs to fit the setting, not just match a carat number. Whether you are replacing a center stone, ordering a calibrated gem, or designing a custom piece, accurate millimeter measurements help prevent loose fits, stressed prongs, and unnecessary bench work.
This guide explains how to measure loose moissanite, which dimensions matter for different shapes, and what to confirm before choosing a setting.
Why millimeter measurements matter more than carat weight
Carat is a unit of weight, while a jewelry setting must accommodate the stone’s physical dimensions. Two moissanite stones with the same stated carat equivalent can have different lengths, widths, depths, or cutting proportions.
For setting compatibility, use the exact measurements in millimeters. Treat carat or diamond-equivalent weight as a helpful size reference, not as a substitute for dimensions.
What you need to measure a loose stone

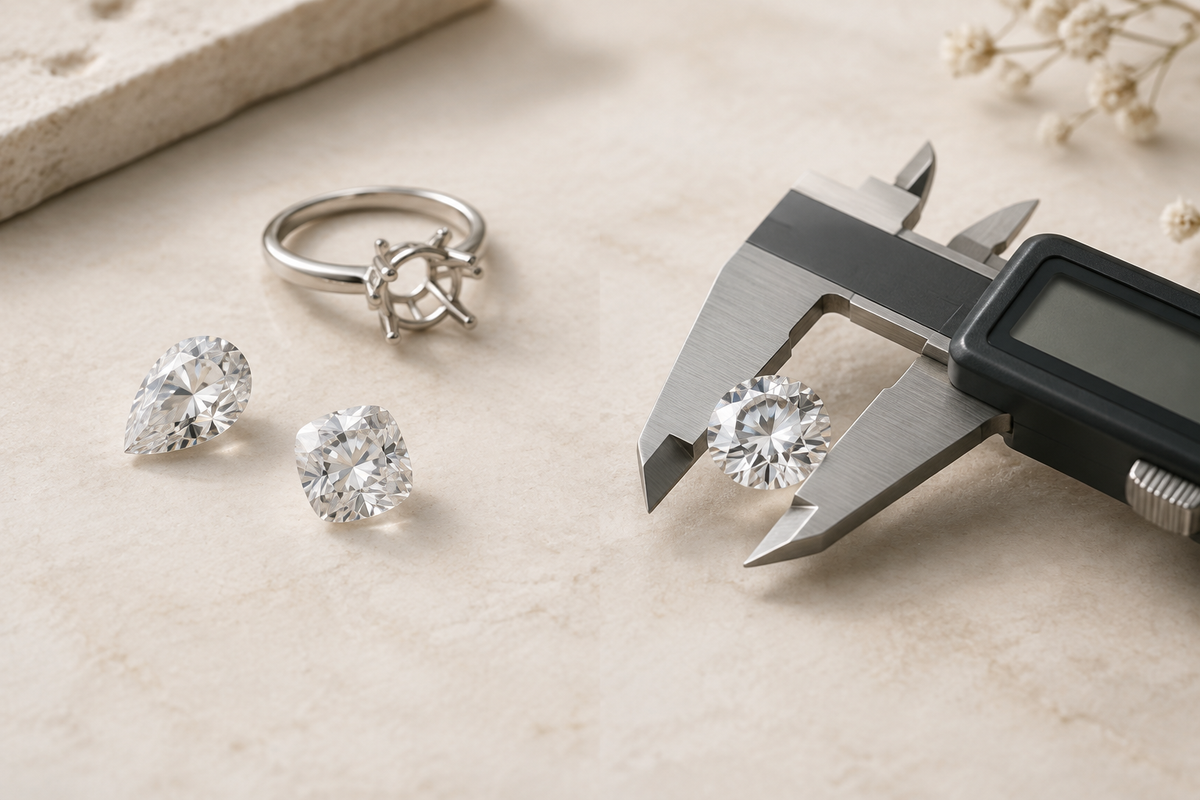

A digital gemstone caliper is the most useful tool for this job. It should provide clear millimeter readings and have smooth measuring tips that will not damage the stone.
Work over a soft, clean surface in good light. Hold the stone securely but gently, and avoid applying unnecessary pressure with the caliper. Take each measurement more than once to confirm the reading.
The three key measurements
Length
Length is the stone’s longest face-up dimension. It is especially important for elongated shapes such as oval, pear, marquise, emerald, and radiant cuts.
Width
Width is measured across the stone at its widest point. For round and square stones, length and width should be close, although small differences can occur.
Depth
Depth is the vertical measurement from the table at the top to the culet or lowest point of the stone. Depth affects whether the pavilion fits comfortably inside the setting and whether there is enough clearance beneath the stone.
How to measure common moissanite shapes
Round
Measure the diameter across the widest part of the girdle. Rotate the stone and take a second diameter measurement. Record both if they differ. Then measure the total depth from table to culet.
Oval, marquise, pear, emerald, and radiant
Measure the full length from end to end, then the width at the widest point. Measure depth separately. For pear shapes, make sure the length includes the tip and the rounded end without pressing the caliper against the point.
Princess, cushion, and Asscher
Measure both sides rather than assuming the stone is perfectly square. Cushion shapes may have rounded edges, so measure at the widest points. Record depth from the table to the lowest point of the pavilion.
Trillion and other fancy shapes
Record the dimensions used by the setting or mounting specification. For a trillion, this may include each side or the maximum width and depth. Unusual shapes often require a setting designed around the individual stone.
Check the length-to-width ratio
For elongated stones, divide the length by the width to calculate the length-to-width ratio. For example, a stone measuring 9.0 × 6.0 mm has a ratio of 1.50.
The ratio describes the face-up outline. It helps when matching a customer’s preferred proportions, selecting pairs, or replacing a stone in an existing design. There is no single correct ratio for every project; the right choice depends on the look and setting.
Understand calibrated sizes and tolerances
A calibrated size is a standard target measurement used for many ready-made settings. Individual stones can still vary slightly, and settings may have their own tolerances.
Do not assume that a stone described as 6 × 4 mm will fit every setting labeled 6 × 4 mm. Compare the stone’s actual measurements with the setting manufacturer’s specifications, including acceptable tolerances and depth clearance.
Measure the girdle and consider the pavilion
The girdle is the outer edge where the crown and pavilion meet. Its thickness and shape influence how the stone sits and where prongs or a bezel make contact.
The pavilion is the lower portion of the stone. A deep pavilion may sit too high or touch the base of a shallow setting, even when the face-up length and width appear suitable. Always check depth and under-stone clearance.
Measuring stones for matched pairs
For earrings or symmetrical multi-stone designs, match more than the stated size. Compare:
- Length and width
- Depth
- Length-to-width ratio
- Outline and corner shape
- Facet pattern and face-up appearance
- Color
Small dimensional differences may become obvious when two stones are placed side by side, so evaluate the pair together under the same lighting.
Can you measure a stone already in a setting?
You can estimate some face-up dimensions while a stone is mounted, but prongs, bezels, and halos may block the widest points. Depth is usually difficult to measure accurately in a finished piece.
If the measurement will be used to order a replacement stone or remake a setting, ask a professional jeweler to inspect the piece. Removing a stone without the right tools can damage the gem or mounting.
A practical checklist before ordering a setting
- Record length, width, and depth in millimeters.
- Measure each dimension at least twice.
- Check the girdle thickness and pavilion clearance.
- Calculate the length-to-width ratio for elongated shapes.
- Compare actual measurements with the setting’s stated tolerance.
- Confirm corner and prong compatibility for fancy shapes.
- For pairs, compare dimensions and face-up appearance together.
Choose the stone first when possible
For custom jewelry, choosing and measuring the loose stone before finalizing the setting gives the jeweler the clearest path to a secure fit. This is particularly useful for elongated, antique-style, and other fancy cuts whose outlines can vary.
